Grain Bag Unloader

The revolutionary design of the Neeralta Extractor offers an entirely new level of efficiency and simplicity.

Grain Bag Unloader
Overview

The Neeralta Extractor is available in two model configurations: A 3-Point Hitch attachment model, and Trailer model with standard hitch. Both configurations offer the same innovative features and operation.

The 3-Point hitch model is an overall shorter machine than the cross-auger-to-hitch length of the trailer model. For this reason, this model is very easy to control through tractor steering if small corrections need to be made during extraction.

The Trailer model has the speed of transport and the flexibility of hauling choices in mind. Get the unit to the field at highway speeds for those longer hauls.

12’ Cross-Auger Extensions: With either model, a convenient option package is available. These Auger Extensions are a very simple and cost-effective way to extend the capacity of your Extractor. Pair it with the Model 1224 variable width Neeralta Bagger, and your bases are covered for bag width capability.

Extractor

Extractor Models

grain bag unloader

Trailer

The Trailer Extractor model has the speed of transport and the flexibility of hauling choices in mind. Get the unit to the field at highway speeds for those longer hauls, or chose any vehicle with a standard hitch for operation.

grain bag unloader

3 Point Hitch

The 3-Point hitch model is an overall shorter machine than the cross-auger-to-hitch length of the trailer model. For this reason, this model is very easy to control through tractor steering if small corrections need to be made during extraction.

Specifications (both models)

  • Main auger diameter: 16”

  • HP Required: 100

  • Capacity: 12,000 Bu/Hr

  • Hydraulic flow: 8 GPM @ 2,200 PSI

  • Bag Baler max bag length: 500+

  • Bag diameter: 9’ – 10‘

  • Bag diameter (extension package): 9’ – 12‘

  • PTO: 540




Primary Option

Auger Extension Package

12’ Cross-Auger Extensions: With either model, a convenient option package is available. These Auger Extensions are a very simple and cost-effective way to extend the capacity of your Extractor. Paired with the 10-12’ variable width Neeralta Bagger, and your bases are covered for bag width capability.







Wrap up your business at the end of the bag and know that your Extractor has wrapped up the mess. The integrated Bag Roller lifts the bag up high, helping eliminate mud, snow and product from wrapping up into the roll. This coupled with the innovative bag-knife which is positioned to cut the bag at the bottom, all aids in the prevention of bag splitting and tearing along the top of the bag. The bag is rolled into a tight, recycle- ready bale. The roller and bale release system are all completely hydraulic and solo-operator friendly.

Standard Equipment & Features

Integrated Bag Roller/Baler

Neeralta Drive wheels

Cross auger



Whether you use a truck or tractor to get your Extractor to location, your Extractor takes it from there. The Hydraulic drive wheels pull the Extractor into the bag. This design allows the operator to use the remote-control to manage the extraction process. With the tractor in neutral, the operator is free to roam and control it all from the palm of the hand.

Hydraulic Drive Wheels

Neeralta Remote Drive
Hydraulic Drive.png



Hydraulically adjustable auger height allows the operator a great deal of freedom during the extraction process. While loading a truck, the operator has the ability to raise or lower the auger to avoid dust or wind-spillage, or create a little extra reach to get the truck further away.

Adjustable Auger Height

Unloader auger up and down



To reach those far hopper corners, or a quick action to correct for truck distance, this feature has it covered. Coupled with the Adjustable Auger height feature, this innovation allows for complete 3-dimensional control of grain flow from the palm of the operators hand—wherever they happen to be.

4-Way Swivel Spout

Neeralta Spout 4 way
Neeralta Extractor Bottom Knife

Bottom knife

Innovative bag knife, positioned to cut the bag at the bottom, aids in the prevention of bag splitting and tearing along the top of the bag.

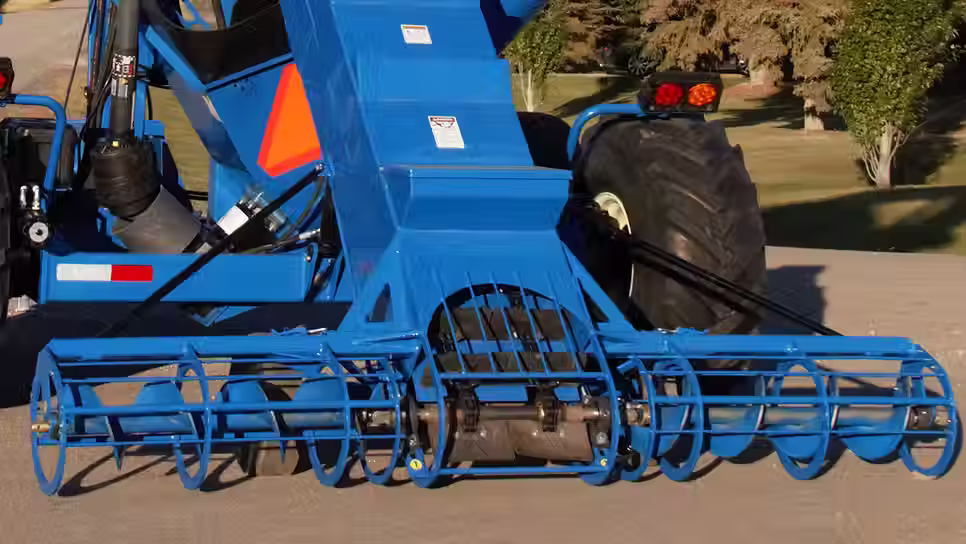

Neeralta Extractor cross augers

Unrestricted intake

The cross augers pull grain into the paddle chains which easily pick up the grain. All in one nice free flowing motion without any restricting gearboxes in the way.

Neeralta Extractor Hitch

Multiple hitch types

Ring hitch allows quick and easy changing from tractors to trucks without the need for tools.  Whether it is single tongue, double tongue, or a pintle hitch you are ready to go.

Neeralta Remote

Remote control

The advanced features and simple operation of the Neeralta Grain Bag Unloader are at the tip of your fingers with the standard on-board WiFi and wireless remote control.


Neeralta Advantages

Labour

One-man operation. Also saves the labour of unrolling grain bags and gathering them later.



Clean

The bag stays clean because the grain bag roller is mounted high and therefore sheds all grain, mud and snow

Recycle-ready

Tightly rolls a grain bag up to  500' long into a bale that is truly recycle-ready.

Cost

Saves you the cost of a separate grain bag baler.

No Tearing

Hydraulic drive wheels move the Neeralta extractor forward into the grain bag to prevent ripping.

Remote

Control from the comfort of your tractor cab.

Options

Wider Tires

Need more flotation ask about upgrading to larger wheels

​​


Auger Extension Package

1 Kit and you can do it all. 9', 10' and 12' bags all with one machine. Value built into every neeralta

Cross auger.jpg

3 point hook up

Save a few bucks and lose the trailer hook into your 3 point pick up.

(Category three 3-point)


Hydraulic

Elevator

Gain more control of your pick up elevator with hydraulics drive.

25 gpm minimum

Hydro elevetor.jpg
Neeralta 12 ft Grain Bagger-1.jpg
